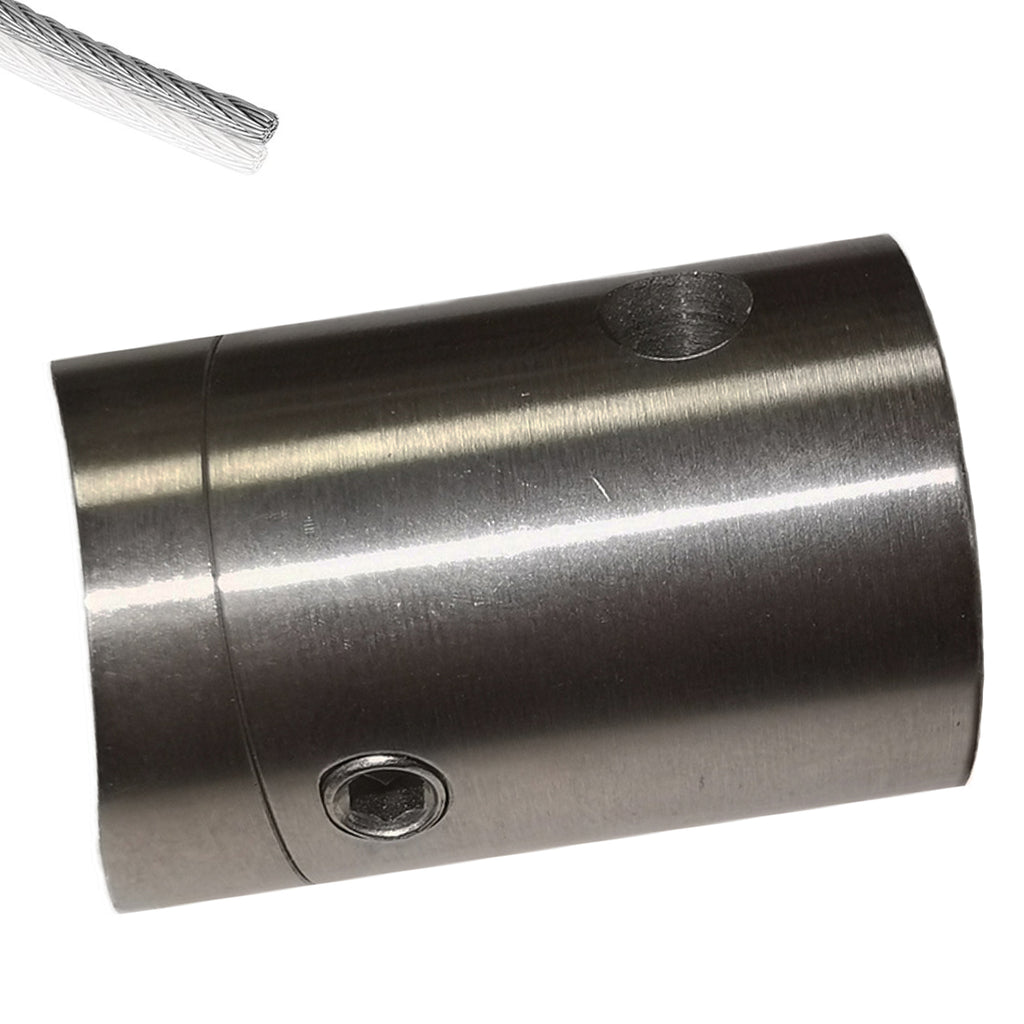

This ESF051 Passage Cable Support for Round Newel Post will attach our 5mm stainless steel cable to the side of a round newel post. The cable goes all the way through this holder.
- Designed to meet and hold our 5mm cable
- Ideal for installation on 1-5/8" round newel post
- Made of AISI 316 Marine Grade Stainless Steel
- Ideal for both interior and exterior use

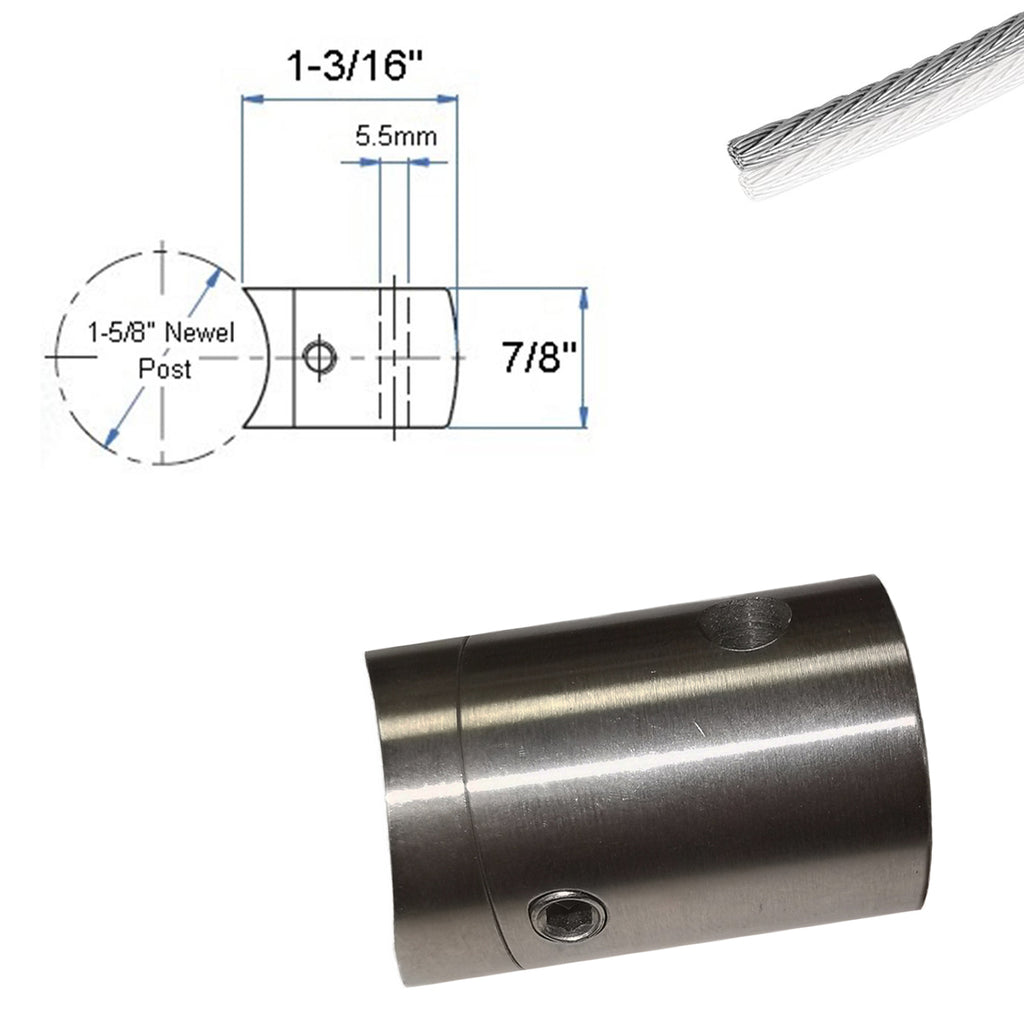

- 7/8" diameter - 1-3/16" Height - Hole: 5.5mm
- 1 Hexagonal socket set screw
- Satin/Brushed finish
- Mark hole position.
- Drill a 11/64" diameter hole.
- Tap hole with a M5 tap.
- Attach holder base to surface.
- Tighten hex head set screw to secure support.
- Insert wire rope into cable support.
