For 1-3/4" (45mm) Round Wood Handrail

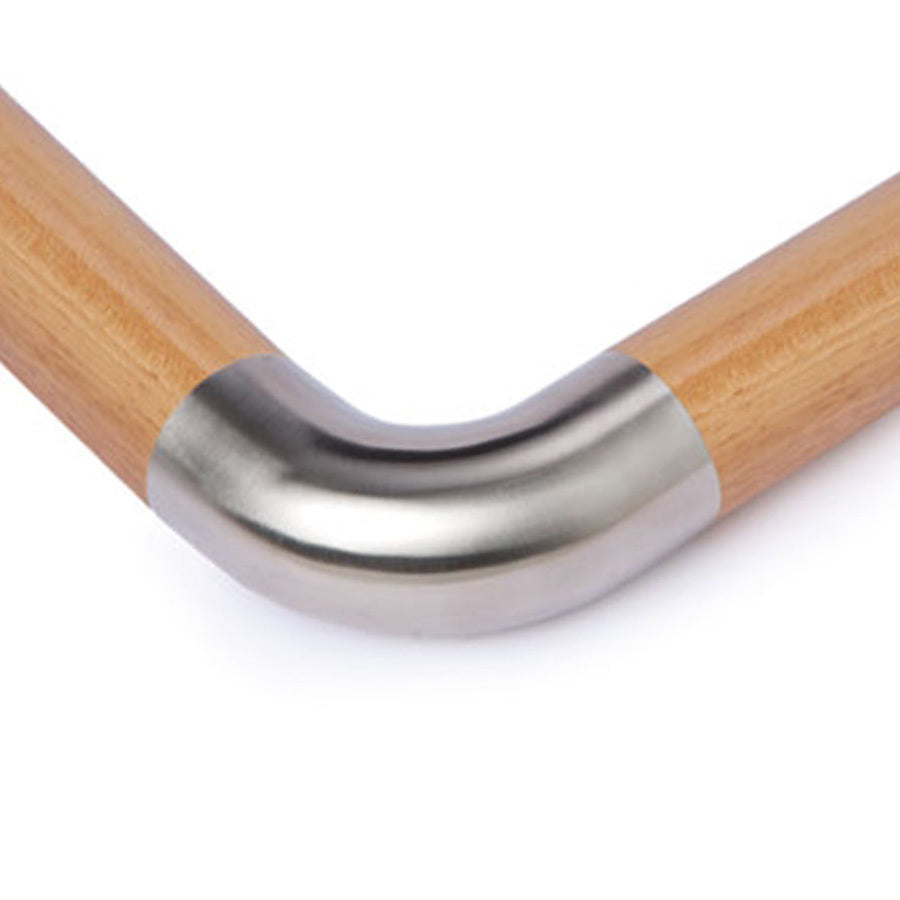

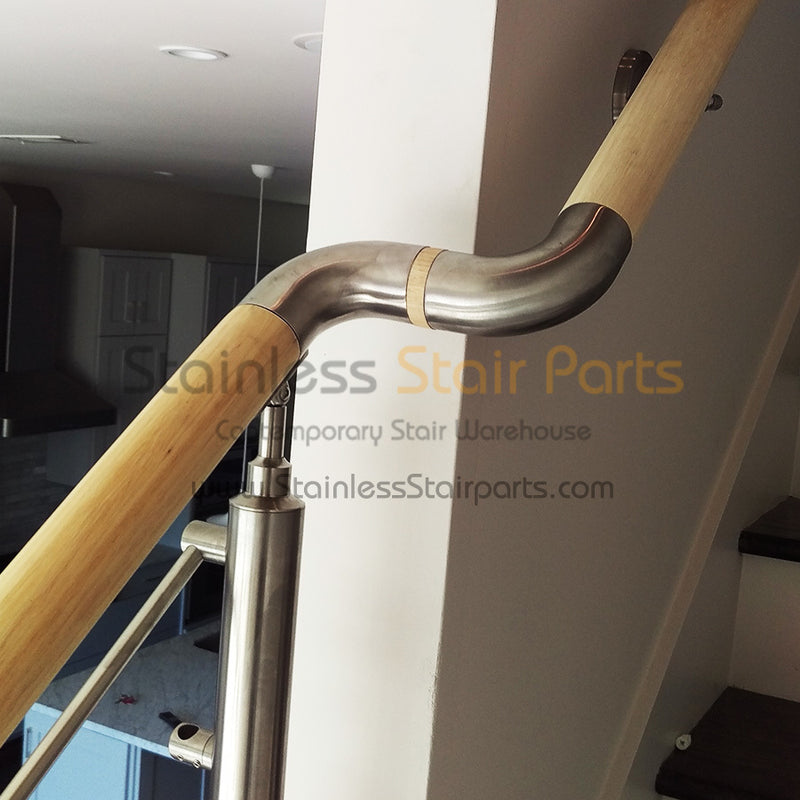

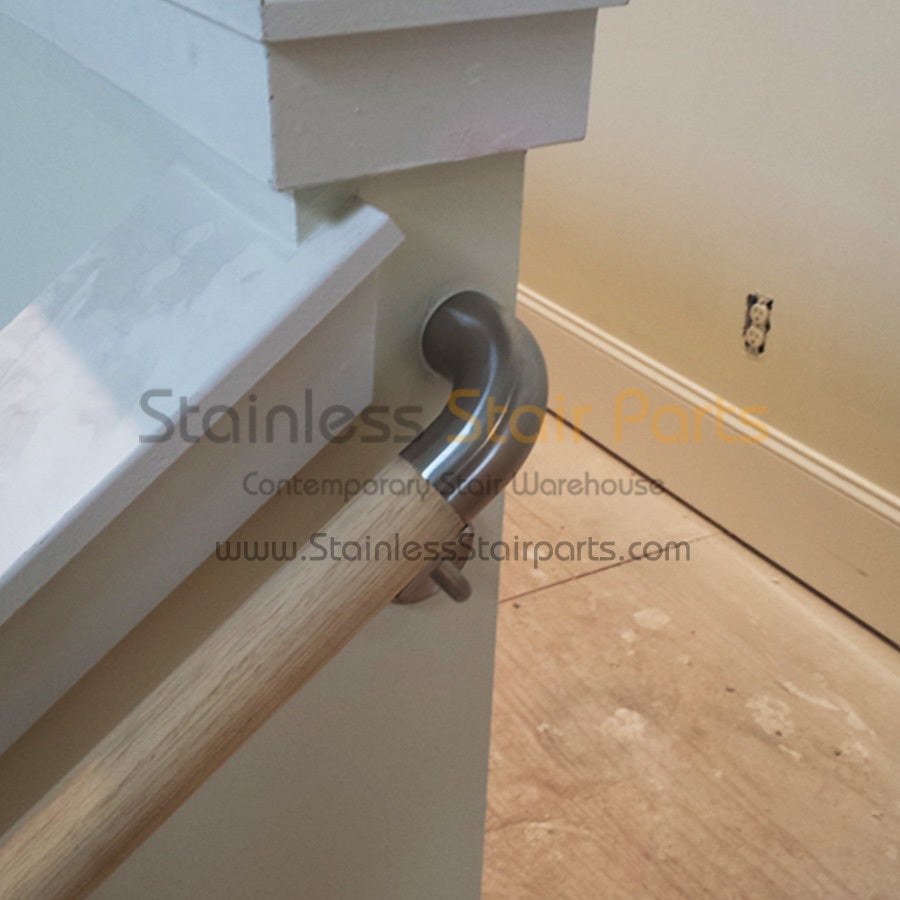

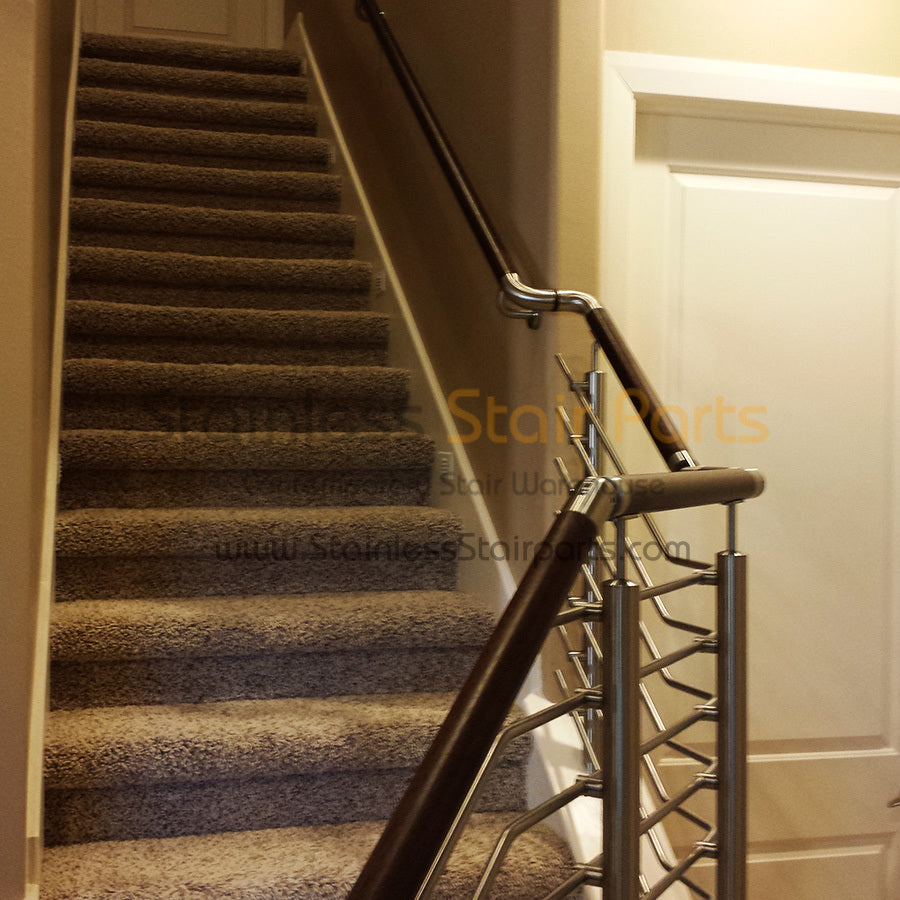

The E600 90 Degree Curved Elbow Fitting allows your round wood handrail to transition smoothly around corners while maintaining a clean, continuous look. Designed to create a seamless 90° left or right turn, this fitting provides both structural integrity and modern architectural style.
Crafted from AISI 316 marine grade stainless steel, it offers superior durability and corrosion resistance, making it suitable for both interior and exterior installations.
Key Features
Smooth Radius 90° Turn
Creates a clean, curved transition around corners for a professional finish.
AISI 316 Marine Grade Stainless Steel
Engineered for long-term performance and corrosion resistance.
Modern Satin / Brushed Finish
Low-sheen stainless surface complements contemporary railing systems.
Precision Fit for 1-3/4" (45mm) Handrail
Designed specifically for standard 1-3/4" diameter round wood railing.
Installation Information
Installation is quick and straightforward:
-

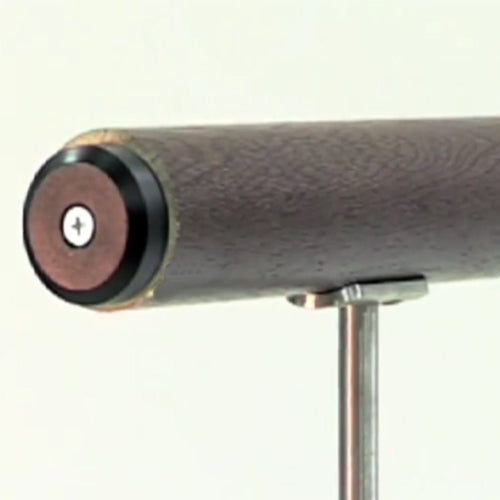

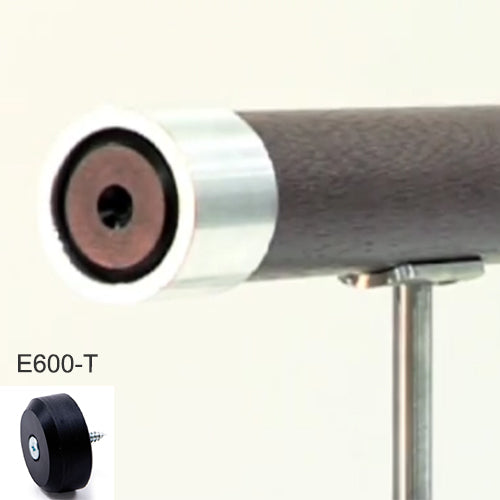

Attach two E600-T plastic supports (sold separately) to the ends of the handrail using screws and high-strength adhesive.
-
Insert the E600 elbow fitting into the supports.
-
Allow adhesive to fully cure before use.

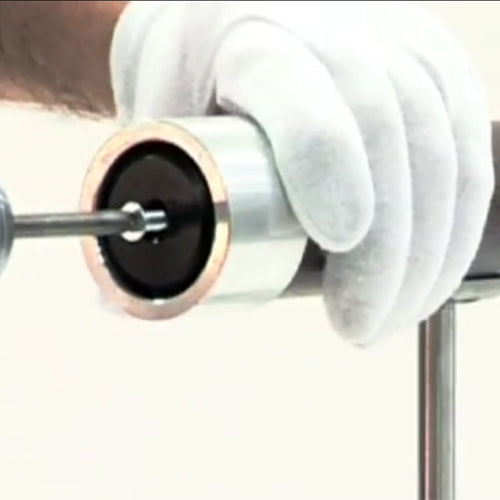

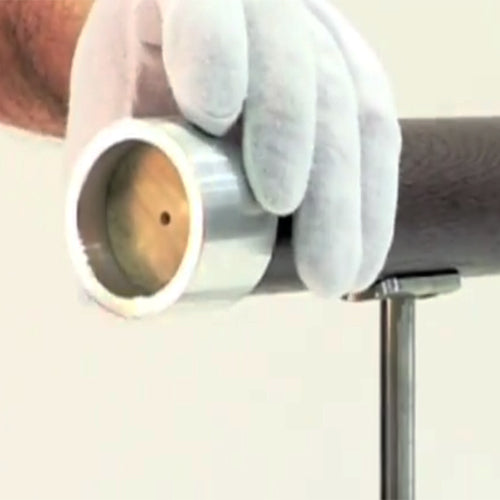

For accurate centering and alignment, the E600-D Drill Gauge is recommended when installing the E600-T supports.

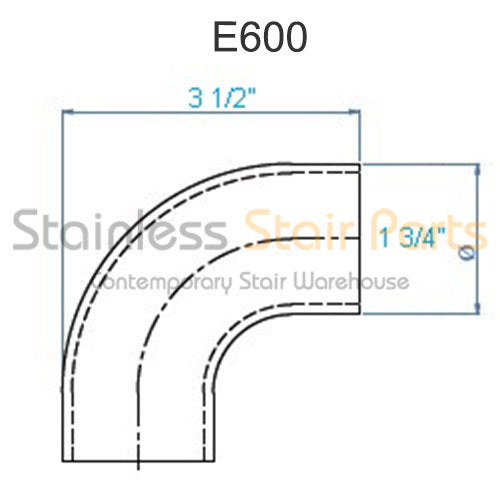

Specifications
-
Fits: 1-3/4" (45mm) diameter round wood handrail
-
External Diameter: 1-3/4"
-
Length: 3-1/2"
-
Material: AISI 316 Marine Grade Stainless Steel
-
Finish: Satin / Brushed
-
Requires: (2) E600-T attachment supports per elbow
The E600 90° Curved Elbow is the ideal solution for achieving smooth directional changes while maintaining strength, safety, and a refined modern appearance.
