The popular E4586 Stainless Steel Contemporary Wall Handrail Support Bracket provides a contemporary look to wood and stainless steel handrails. This modern handrail support can be used to install: Round or flat wood railing and stainless steel handrail.
- Made of AISI 316 Marine Grade Stainless Steel
- Ideal for both interior and exterior use
- Will mount into wood, steel or concrete
- M6 X 12 Threaded insert for wood included

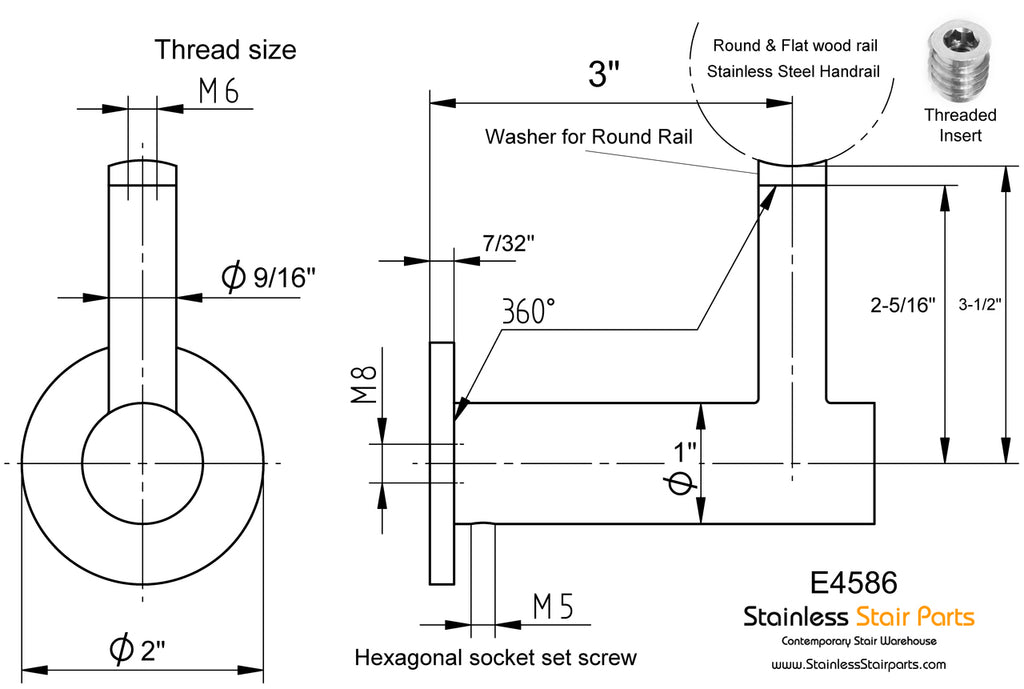

- Height: 3-1/2" - Width: 3" from wall to center of rail
- Wall Flange Diameter: 2" - Flange has one 5/16" mounting hole
- Horizontal arm thickness: 1" - Vertical arm thickness: 9/16"
- 1 Hexagonal socket set screw M5
- Some assembly required
- Requires one wood screw "E1025W" to install (sold separately)
Note: Building codes require a handrail installation any time there are more than three steps. Consult your local building code for specific requirements.
Wall rail brackets should be installed every 48” on center average. Use 3 brackets per each 8' section.
