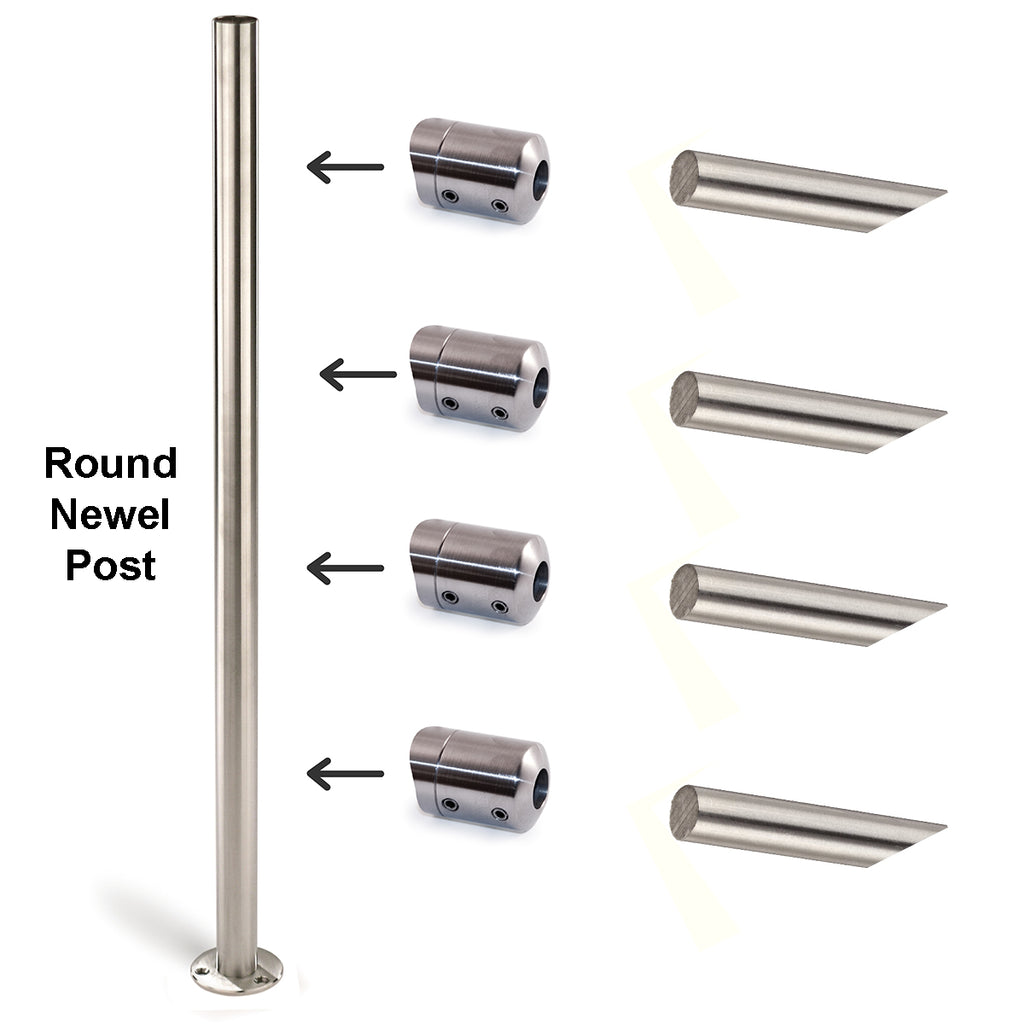

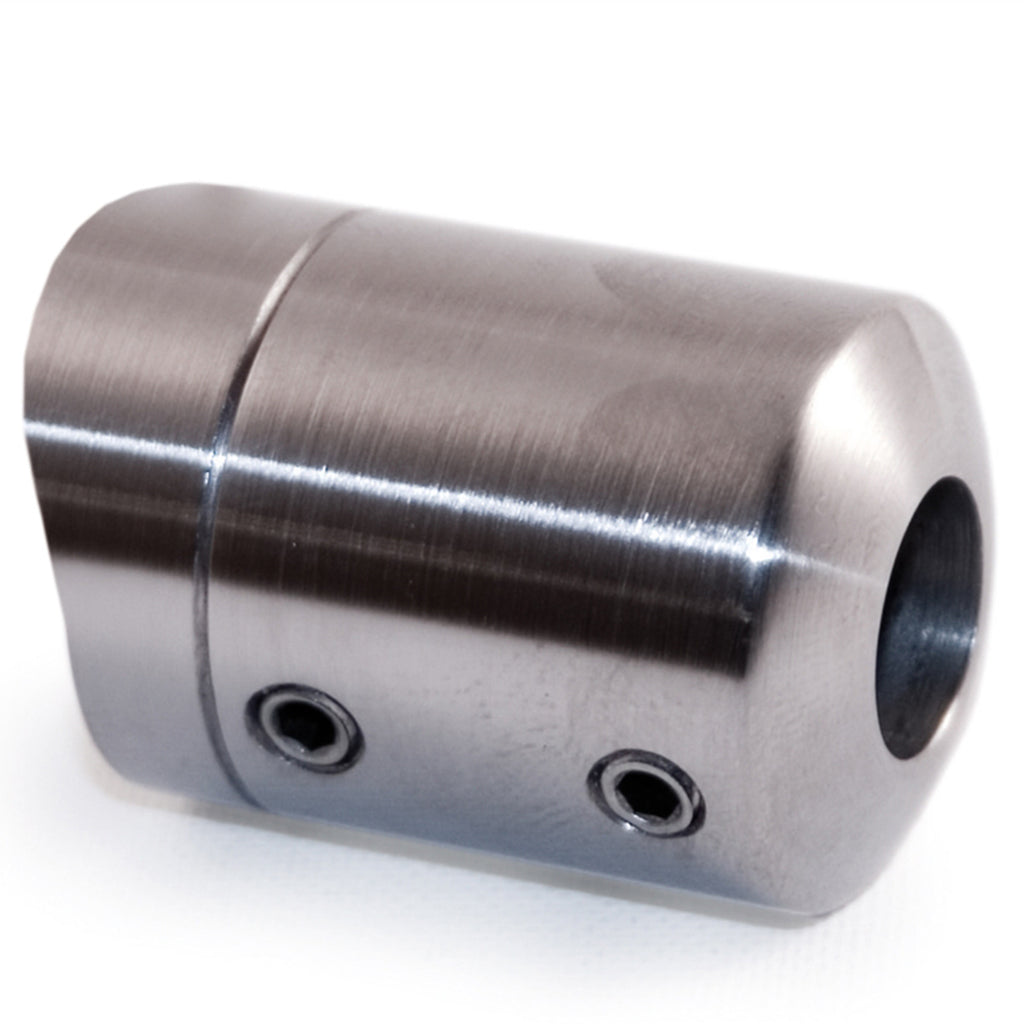

The E41651 In-Line Round Bar Holder For Round Newel Post it's used to install stainless steel 1/2" round bars in-line between round newel posts.
- Designed to meet and hold our 1/2" (12mm) stainless steel round bars
- This piece is ideal for our 1-5/8" round Newel Posts
-
316 marine grade quality suitable for interior or exterior use
- 7/8" diameter - 1-3/8" height
- 2 Hexagonal socket set screw
- Satin/Brushed finish
- Drill required for installation
- Requires one E0385 screw to attach
Installation:
- Mark hole position.
- Drill a 11/64" diameter hole.
- Tap hole with a M5 tap if needed.
- If attaching to wall or wood use wood screws.
- Attach flat bar holder base to surface.
- Insert rod into bar holder.
- Tighten hex head set screws to secure bar holder and rods.
