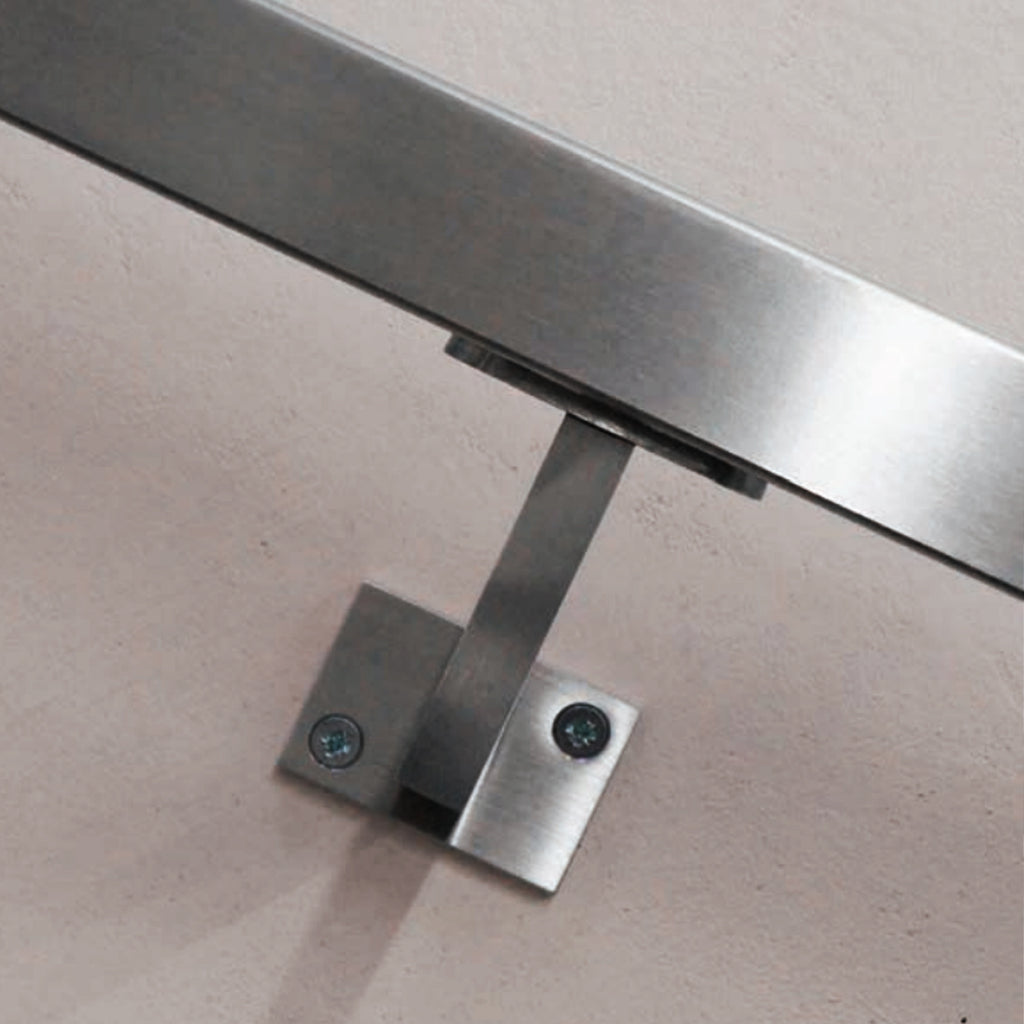

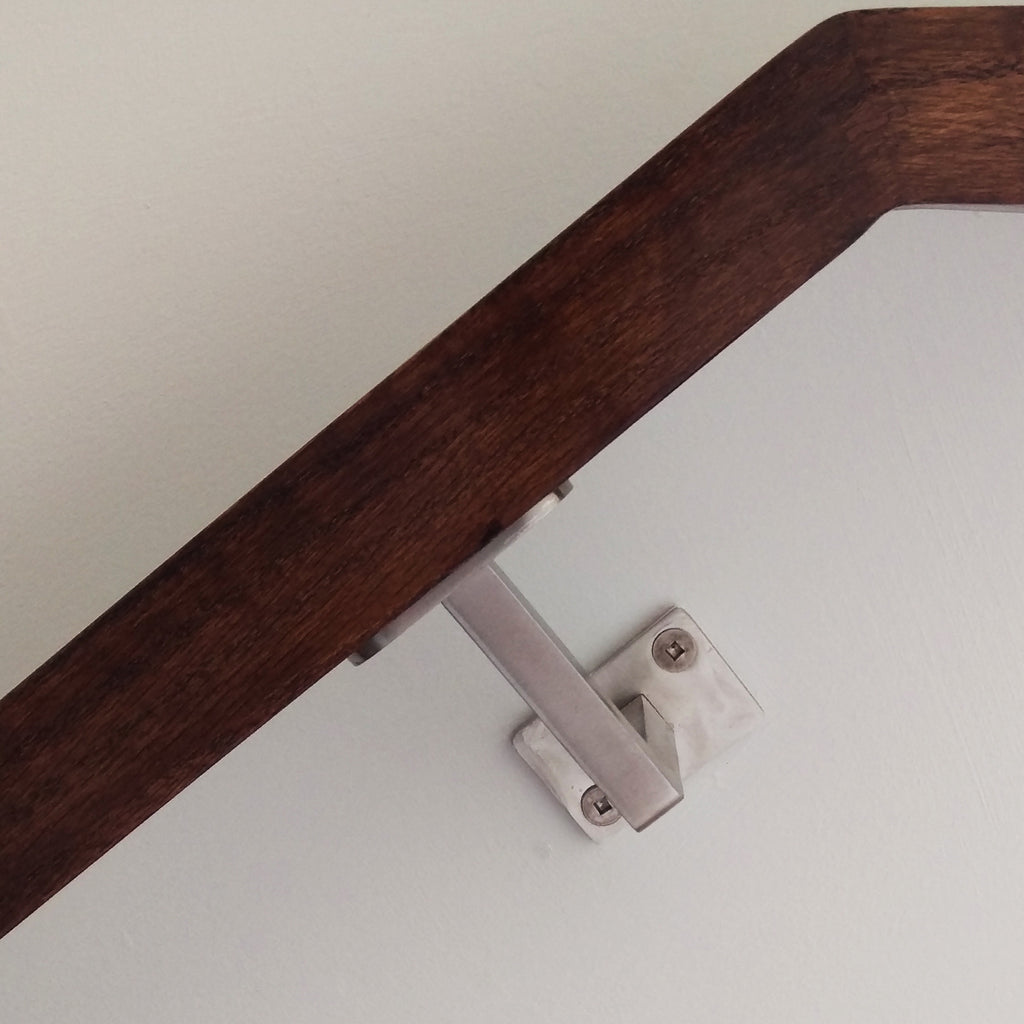

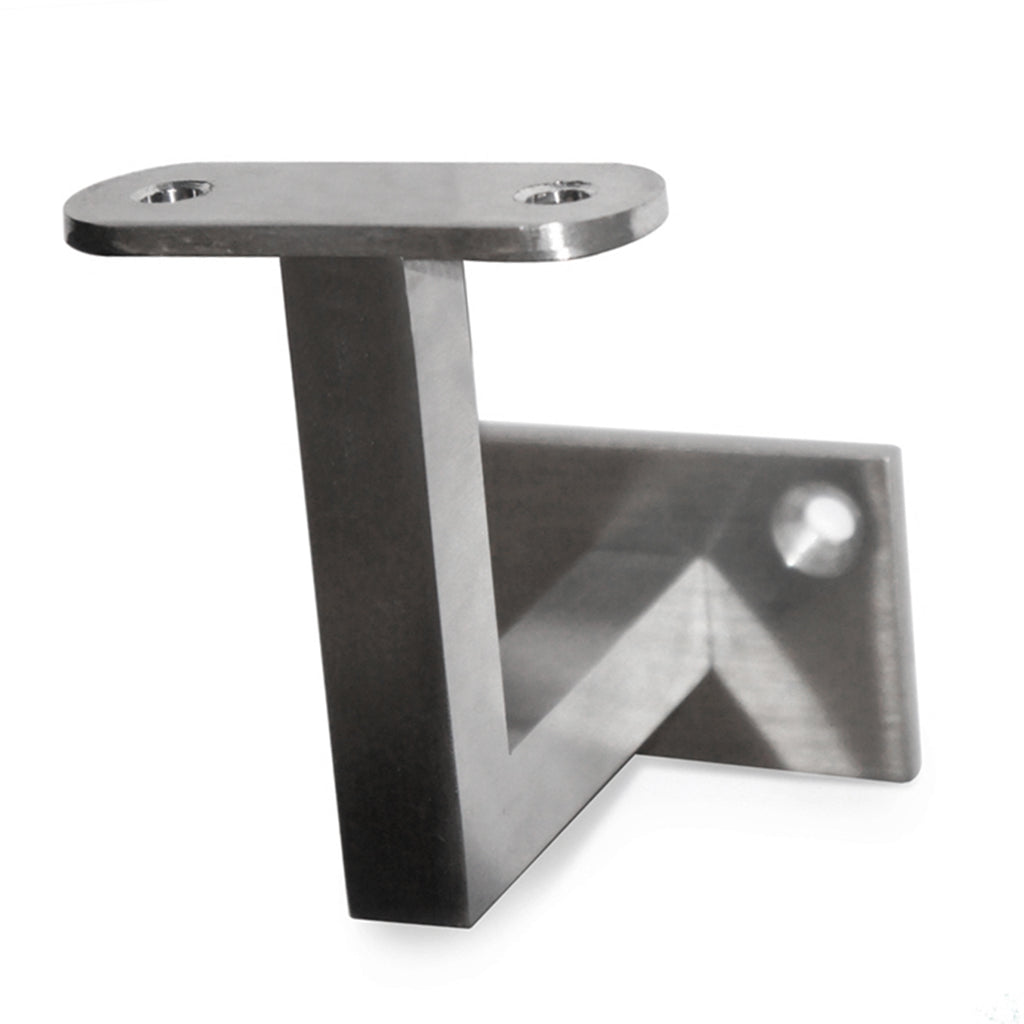

This attractive E036300 Contemporary Rigid Wall Rail Bracket Support is ideal for leveled balconies or for supporting handrails at any angle. Has a rigid mounting plate and provides a contemporary look to commercial and residential properties.
Installation is quick and easy, simply find a stud (use a stud finder to locate the center of each stud), pivot bracket to the proper handrail angle and then fasten the bracket to the wall.
- Contemporary style - Rigid mounting plate
- Will mount into wood, steel or concrete
- Available for interior and exterior use
- Will fasten to a top rail of wood or steel

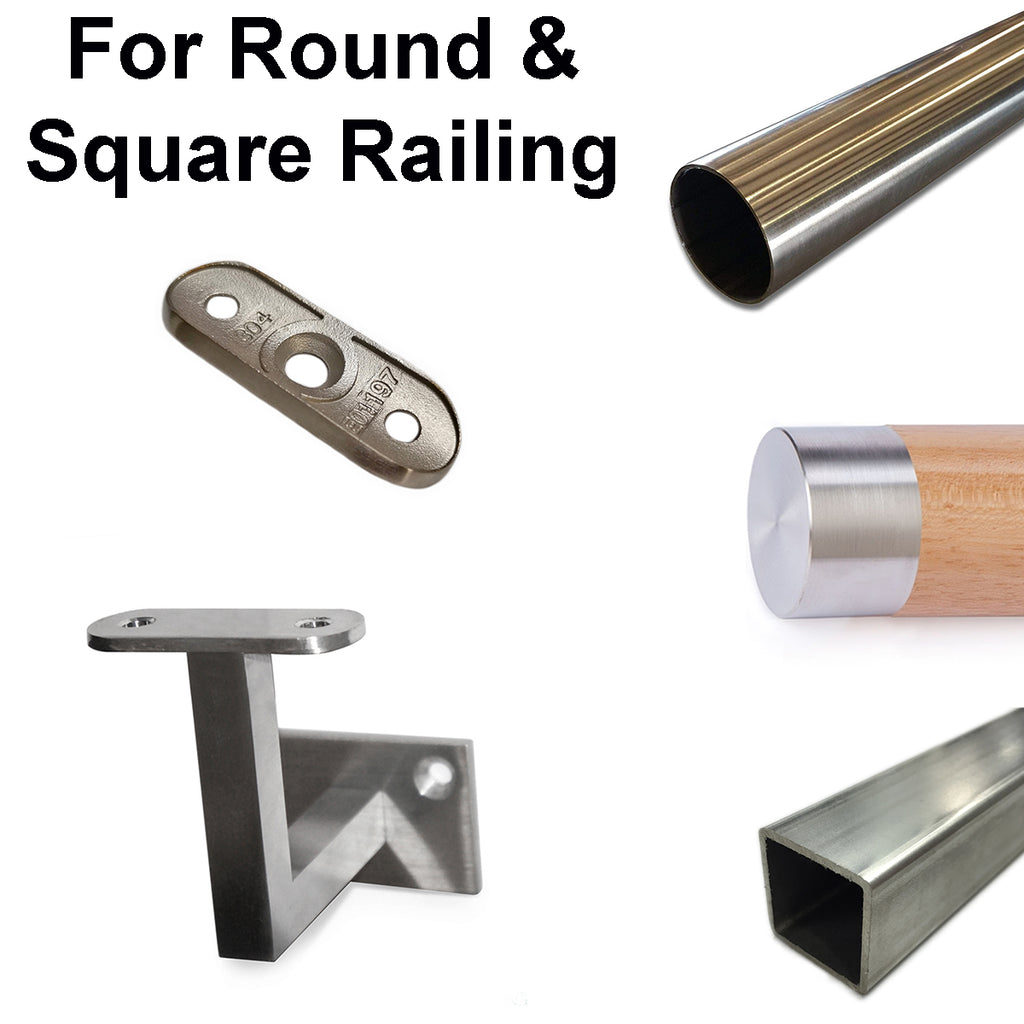

- Available for square and round bottom handrails

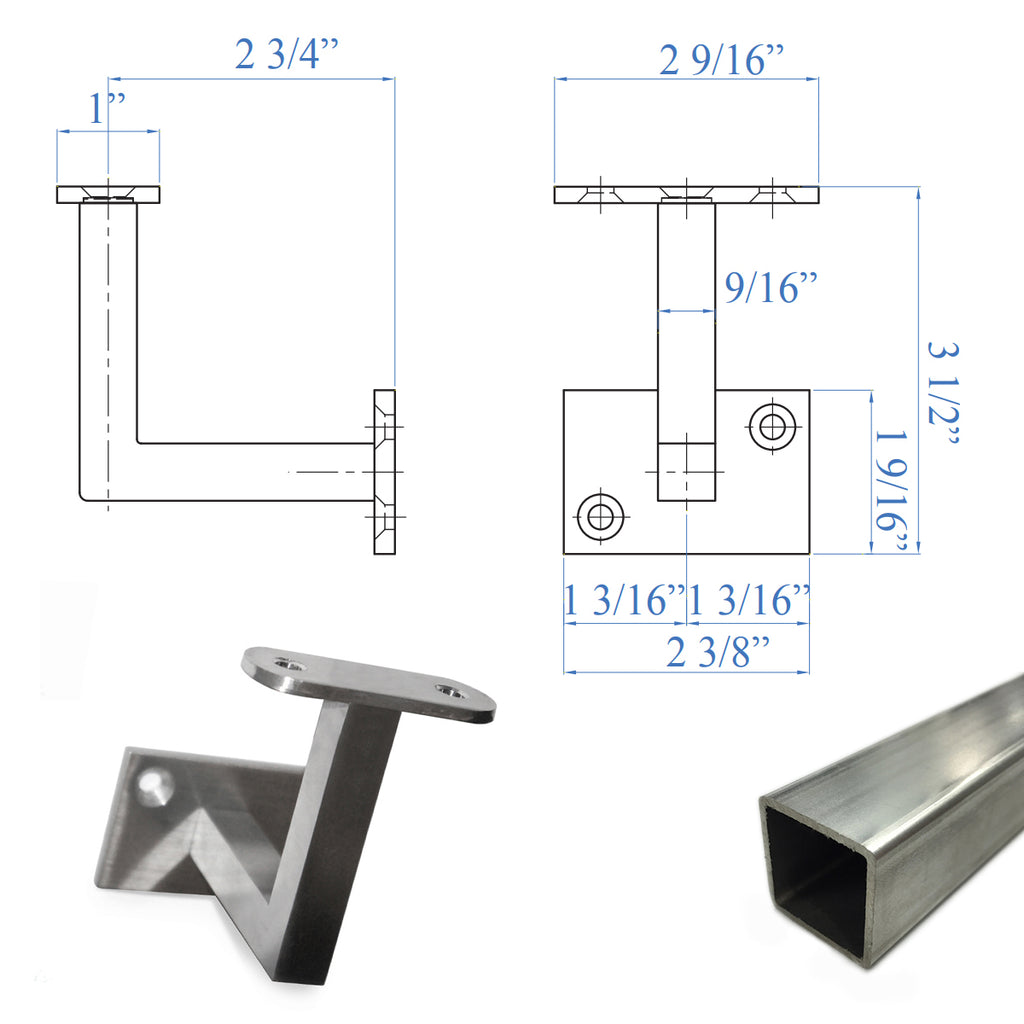

- Height: 3-1/2" - Width: 2-3/4" from wall to center of rail
- Flange: 2-3/8" x 1-9/16"
- Flange has two 5/16" mounting holes
- Arm Thickness: 9/16" - Satin/Brushed finish
- Very elegant look - Ready-to-Install
With the correct installation of a handrail support, you can ensure that various aspects of a home are made safe and easier to use and also have a decorative touch.
Note: Wall rail brackets should be installed every 48” on center average. Use 3 brackets per each 8' section.

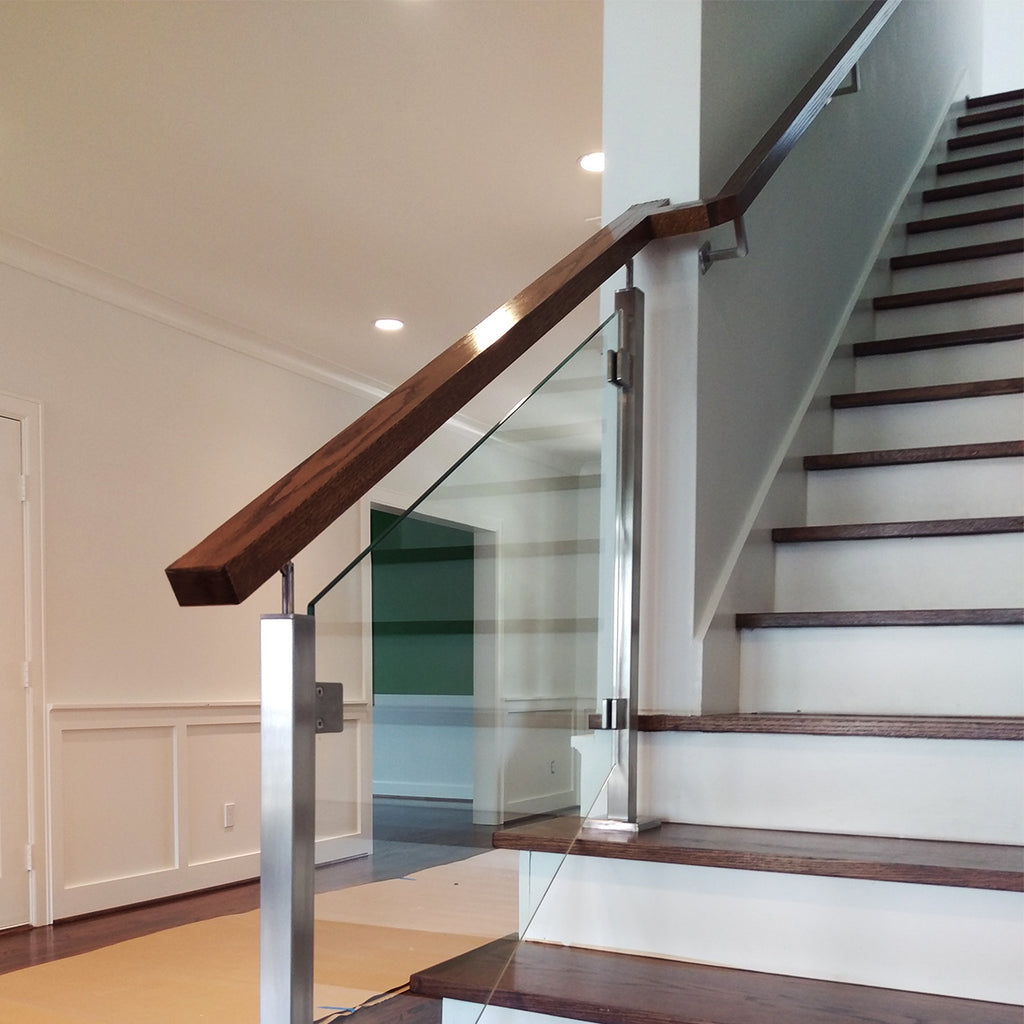

Stair wall rail is provided to help support a person requiring something to hold on to as they use steps or a ramp. Wall rails must also be graspable and be positioned so that they protrude out from the wall, providing a clear space of at least 1-½". The minimum height requirement in the IBC for wall rails is 34" measured vertically above the nose of the tread of the steps and the 38" the maximum.
