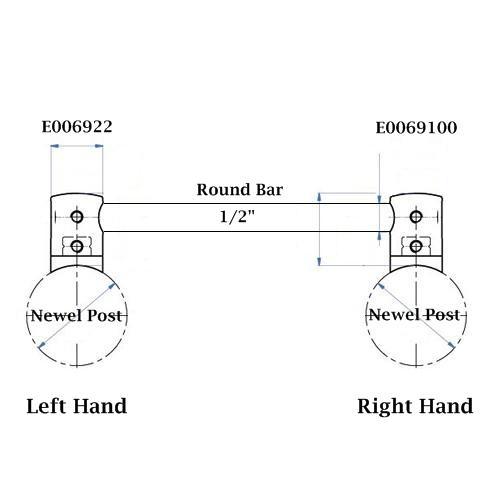

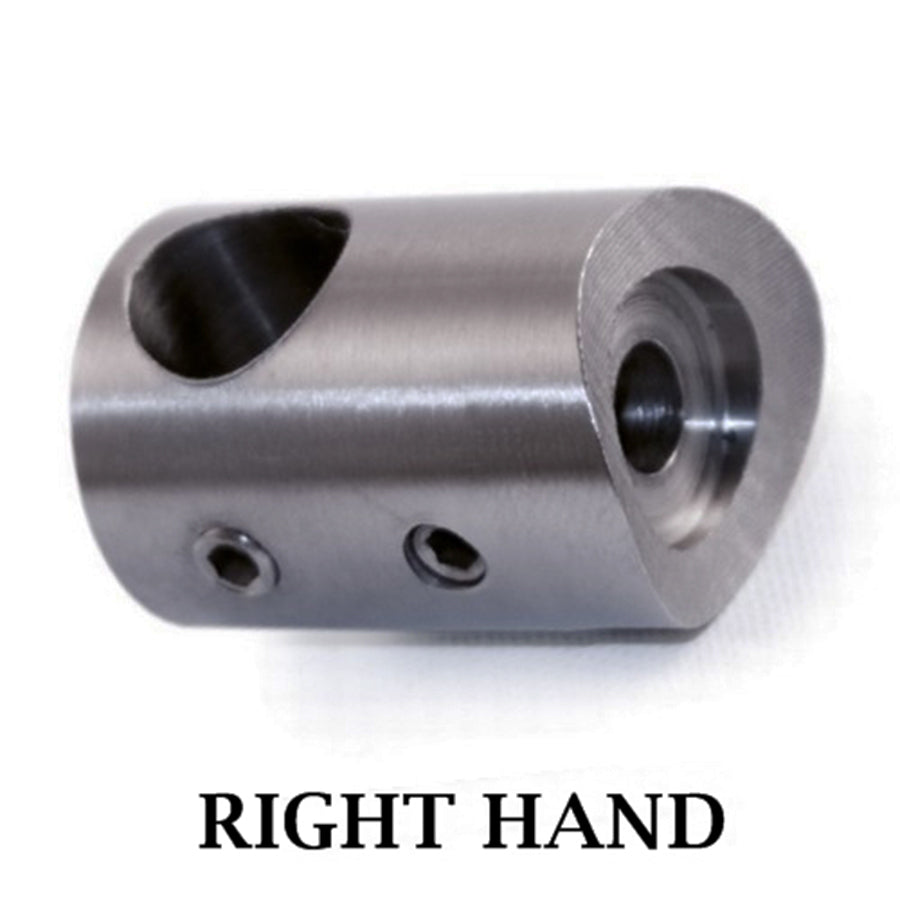

The E0069100 Stainless Steel Round Bar Holder Right Hand Blind Termination will attach to a 1-5/8" round newel post and terminate a stainless steel 1/2" (12mm) rod/round bar on the right side of the system.
- Designed to hold and terminate our 1/2" stainless steel round bars
- Available for interior and exterior use
- For installation on Round Newel Posts
- Matches the rest of round bar holders
- Also available in left hand termination
- 7/8" diameter - 1-3/16" Height
- 2 Hexagonal socket set screw
- Satin/Brushed finish - Easy to clean
- Drill required for installation
- Requires one E0385 screw to attach to newel post
- Tighten with an Allen-style wrench ALW-2.5MM (Sold separately)

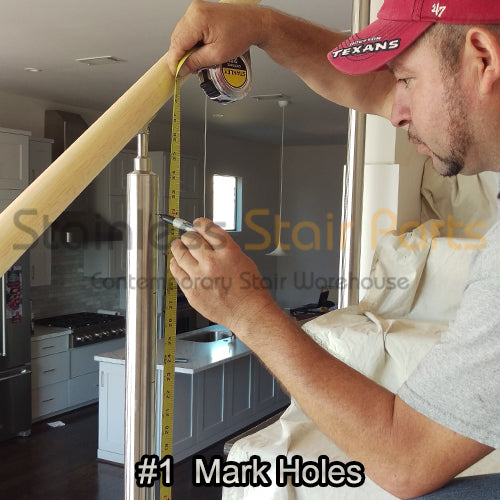

- Mark hole position.

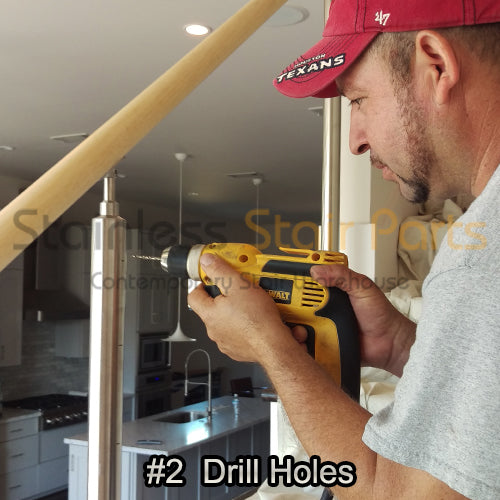

- Drill a 11/64" diameter hole.

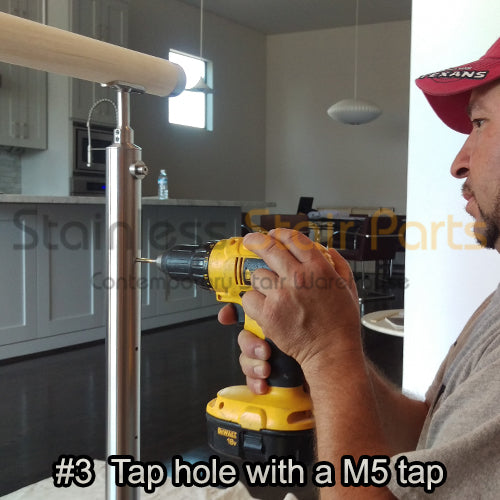

- Tap hole with a M5 tap.

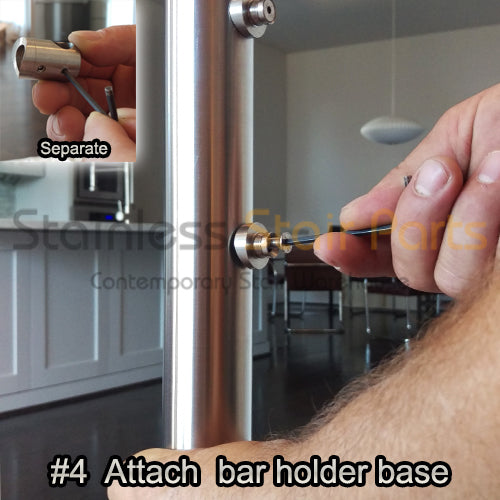

- Attach round bar holder base to surface.

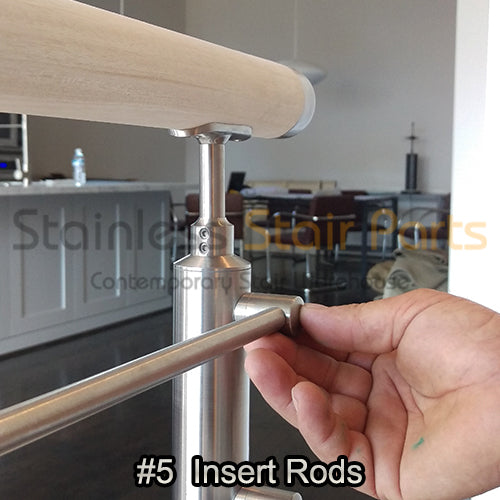

- Insert rod into bar holder.

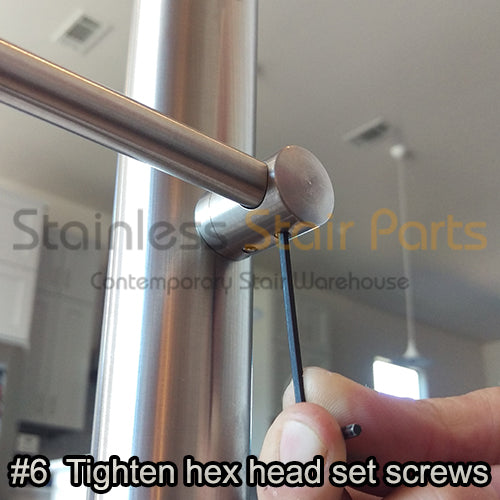

- Tighten hex head set screws to secure bar holder and rods.
