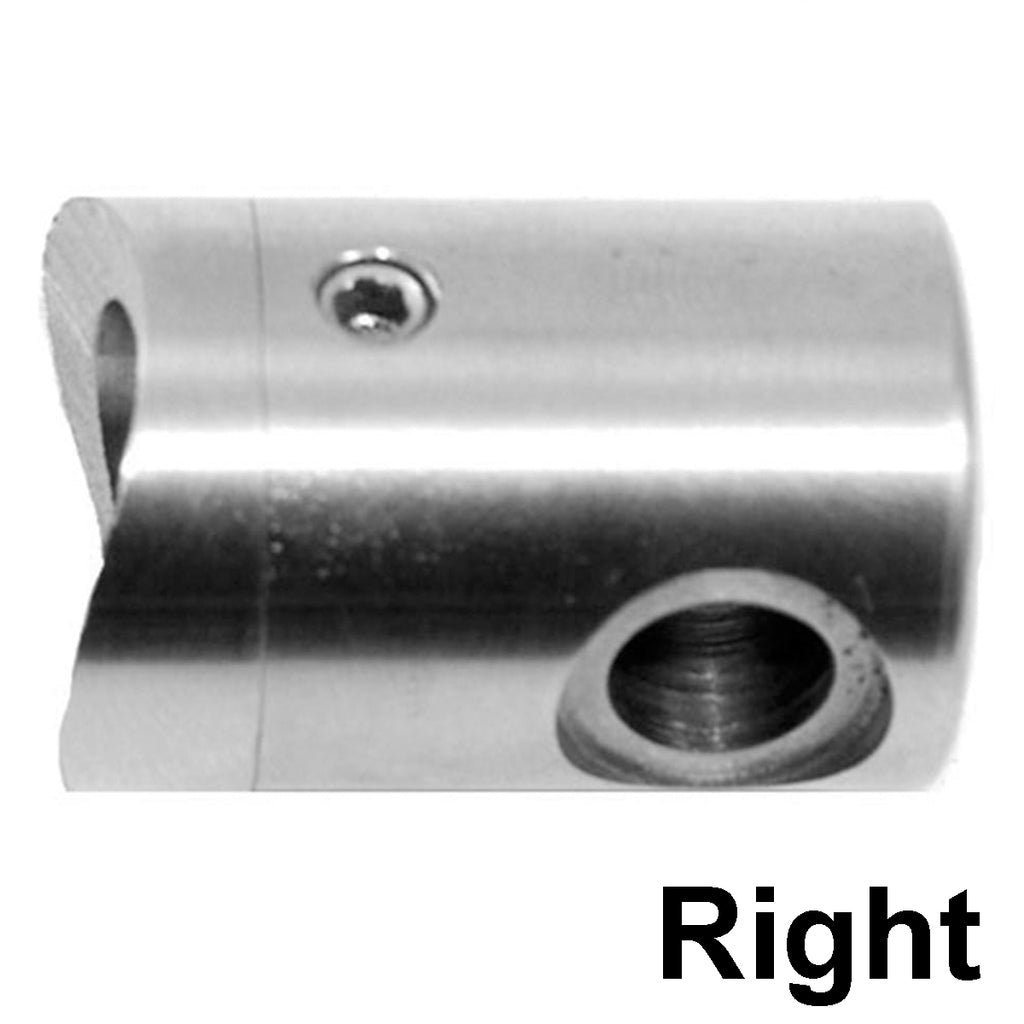

The 5mm Cable Support "Right Hand" Termination will attach to a newel post tube and terminate a 5mm cable on the right side of the system.
- Designed to meet and hold 5mm Cable (13/64")
- For installation on 1-5/8"Round Newel Posts
- Also available in left hand termination
- Made of Stainless Steel AISI 316 for both interior and exterior use

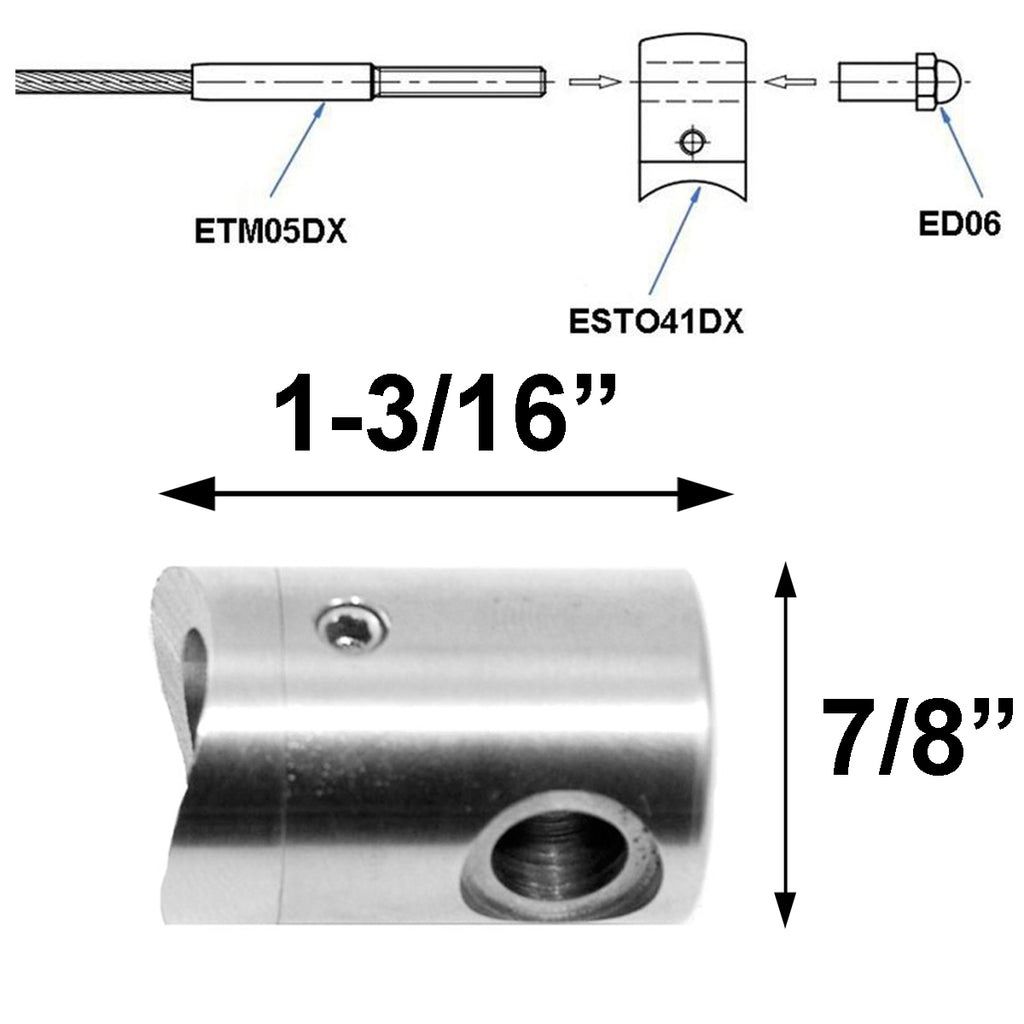

- 7/8" diameter - 1-3/16" Height
- 1 Hexagonal socket set screw
- Satin/Brushed finish
- Requires one E0385 screw to attach
- Mark hole position
- Drill a 11/64" diameter hole
- Tap hole with a M5 tap
- Attach holder base to surface
- Tighten hex head set screw to secure support
- Insert wire rope into cable support
