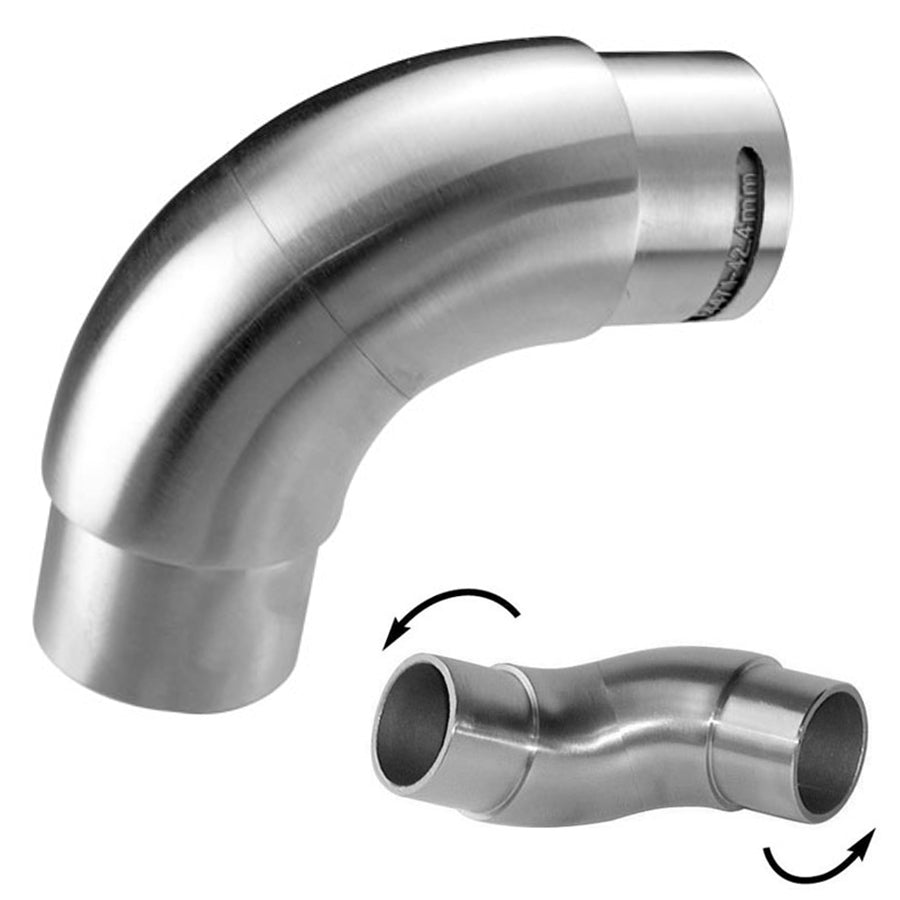

The E4471 Articulated Curved Elbow Fitting Connector offers the flexibility to connect stainless steel railing tube virtually in any direction. Designed for a flush fitting to provide you with a simple, strong and neat way to join stainless steel railing together with an adjustment of 360° in each direction.
- Made of AISI 316 Marine Grade Stainless Steel
- Cost effective alternative to welding
- Ideal for both interior and exterior use
- Fitts 1-5/8" (42.4mm) diameter railing
- Creates a piviotable bridge between two pieces of stainless steel handrail
- Adjustment from 90° to 180° (with offset)
- Two internal set screws
-

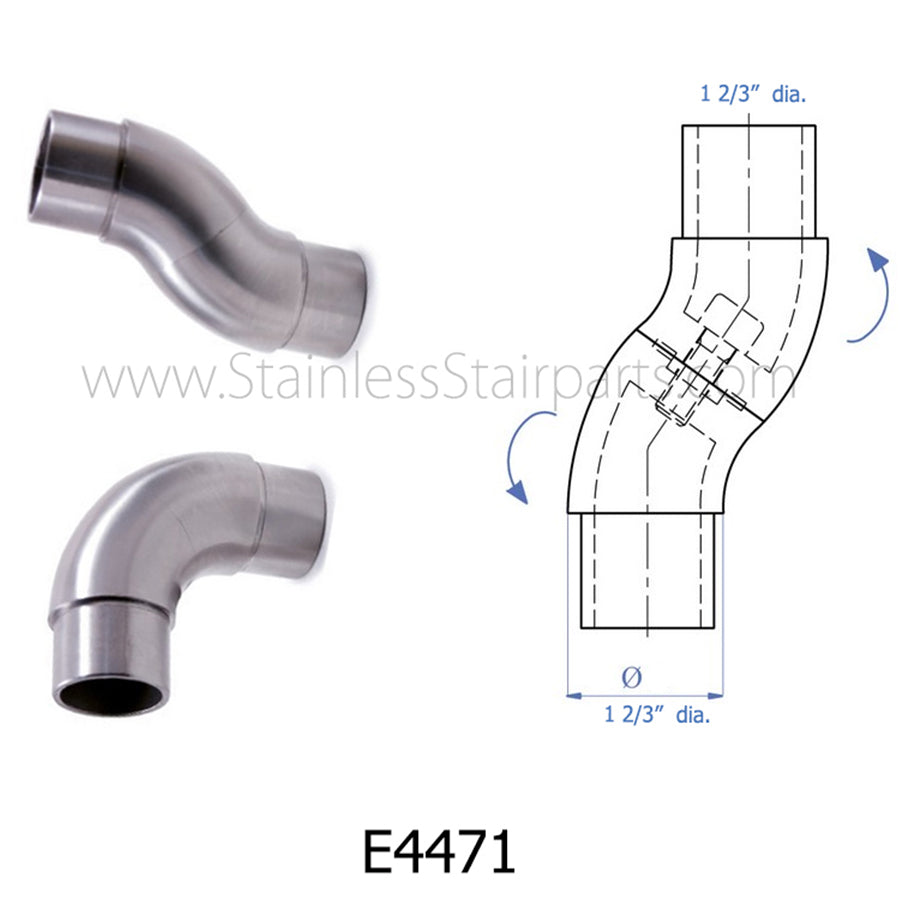

External Diameter: 1-5/8" (42.4mm) - Length: 3-1/2" - Thickness: 3/32"
- For permanent and strong connections, we recommend using our high strength stainless steel adhesive E4054

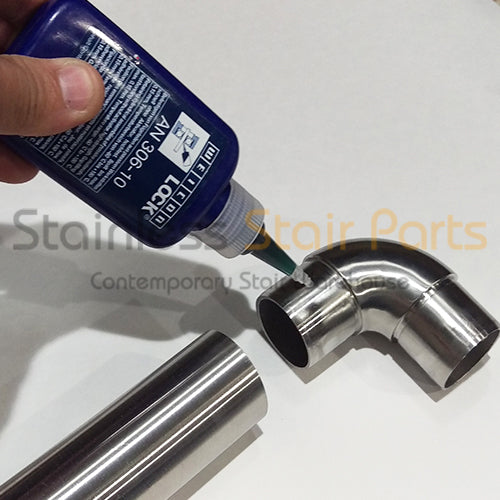

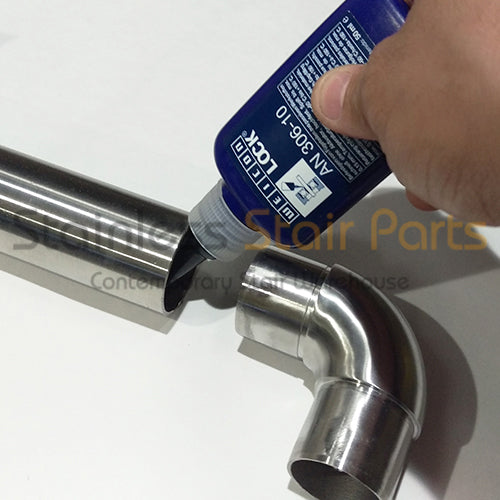

Installation is quick and easy, simply glue the ends with a high strength stainless steel adhesive and insert into your tube to the angle required, block oxygen flow and leave to set.
